HT24LC02A

CMOS 2K 2-Wire Serial EEPROM

HT24LC02A Features

* Operating voltage 1.8V~5.5V for temperature -40°C to +85°C

* Low power consumption

* Operation: 5mA max.

* Standby: 2μA max.

* Internal organization: 256×8

* 2-wire serial interface

* Write cycle time: 5ms max.

HT24LC02A General Description

The HT24LC02A is a 2K-bit serial read/write nonvolatile memory device using the CMOS floating gate process. Its 2048 bits of memory are organized into 256 words and each word is 8 bits. The device is optimized for use in many industrial and commercial applications where low power and low voltage ope.

HT24LC02A Datasheet (708.50 KB)

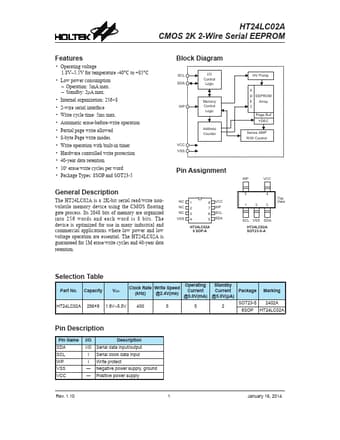

Preview of HT24LC02A PDF

Datasheet Details

Part number:

HT24LC02A

Manufacturer:

Holtek Semiconductor

File Size:

708.50 KB

Description:

Cmos 2k 2-wire serial eeprom.
