HT6751A Datasheet - Holtek Semiconductor Inc

HT6751A - Camera Motor Driver (1.5 Channel)

The IC can control H Bridge circuit for motor driving.

It provides Spark Killer Diode/Thermal Shutdown function/Forward function/Reverse function/Brake function/Stop function for motor driver application.

It is designed by LSI high technology with low power process.

Block Diagram V D D V S S IN 1 I

HT6751A Features

* HT6751A/B Operating voltage: 2.0V~6.0V Operating current < 2mA at 3.0V, No load Standby current IVDD< 2mA, no load Separate logic power supply and motor power supply

* Built-in thermal shutdown circuit Built-in H bridge control circuit Built-in

HT6751A_HoltekSemiconductorInc.pdf

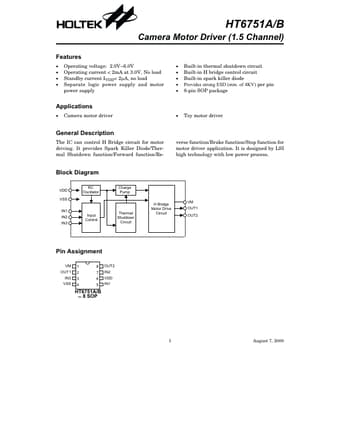

Preview of HT6751A PDF
HT6751A Datasheet Preview Page 2 HT6751A Datasheet Preview Page 3

Datasheet Details

Part number:

HT6751A

Manufacturer:

Holtek Semiconductor Inc

File Size:

81.31 KB

Description:

Camera motor driver (1.5 channel).
