HT6720 13.56MHz RFID Transponder

The HT6720 is an RF transponder IC with 13.56MHz RF carrier, which provides a low cost batteryless transponder solution when combined with an external inductor. The inductor and internal capacitor form an LC tank which induce voltage from the radiated 13.56MHz carrier signal generated from the reade.

HT6720 Features

* Very low operating current (4mA @ VDD=3V)

* Wide range operating voltage

* Batteryless RF transponder

* Data transmission in read-only operation

* Max. of 64-bits customer programmable data

* 16-bits CRC error detection code

* OTP data memory

* 13.56MHz carrier freq

HT6720_HoltekSemiconductor.pdf

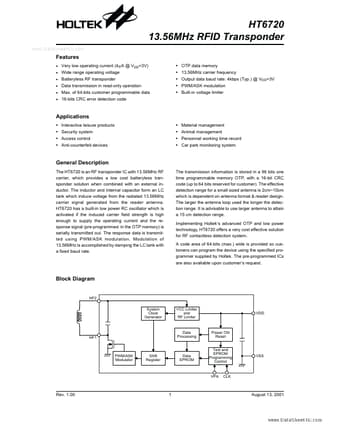

HT6720 Datasheet Preview — Preview of HT6720 PDF

Datasheet Details

Part number:

HT6720

Manufacturer:

Holtek Semiconductor

File Size:

145.37 KB

Description:

13.56mhz rfid transponder.
