HT6750A - Date Printer

HT6750A Description

HT6750A Date Printer www.DataSheet4U.com .
The 6-Digital Timer is a camera data optical printer.

HT6750A Features

* Operating voltage: 2.4V~5.5V
* Operating current: < 3mA at 3.0V
* Constant voltage output (1.8V±5%) at 2.4V~5.5V
* 32K crystal oscillator (Internal capacitor and resistor)
* Calendar and time adjustment
* Date imprinting modes operating for driving lamp (1.8V/40mA)
* L

HT6750A Applications

* Date from 1-1-²98 to 31-12-²49 (2049) automatic OFF recognition: when the ON key is pressed longer than TOFF , OFF is recognized; the next input has to wait. 31.25ms£TOFF£62.5ms,
* If at least one key-ON time pulse is detected during updating, including leap years.
* Matrix address L

📥 Download Datasheet

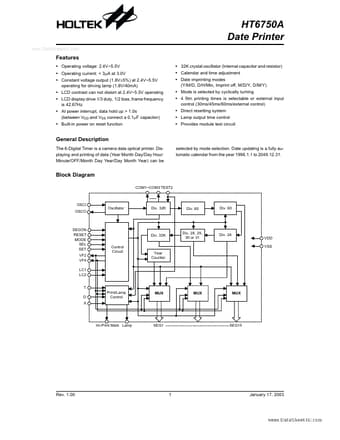

Preview of HT6750A PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
HT6750A
Manufacturer
Holtek Semiconductor
File Size
160.74 KB
Datasheet
HT6750A_HoltekSemiconductor.pdf
Description
Date Printer
