HT6751B Datasheet - Holtek Semiconductor

HT6751B - Camera Motor Driver

The IC can control H Bridge circuit for motor driving.

It provides Spark Killer Diode/Thermal Shutdown function/Forward function/Reverse function/Brake function/Stop function for motor driver application.

It is designed by LSI high technology with low power process.

Block Diagram V D D V S S IN 1 I

HT6751B Features

* Operating voltage: 2.0V~6.0V Operating current < 2mA at 3.0V, No load Standby current IVDD< 2mA, no load Separate logic power supply and motor power supply

* Built-in thermal shutdown circuit Built-in H bridge control circuit Built-in spark kill

HT6751B_HoltekSemiconductor.pdf

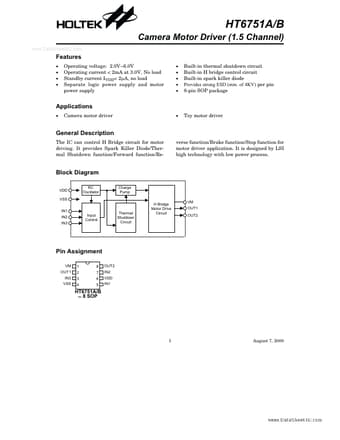

Preview of HT6751B PDF
