HT82V72 - 6-channel 120MSPS CIS Analog Signal Processor

HT82V72 Description

HT82V72 6-channel 120MSPS CIS Analog Signal Processor with Timing Generator and Shading Correction .

HT82V72 Features

* 3.3V operating voltage
* Up to 120MSPS for two 3-channel inputs
* Programmable CIS module timing generator
* 9-bit programmable gain amplifier
* 8-bit programmable offset
* 4-bit programmable line-clamping bias
* Internal voltage refer

📥 Download Datasheet

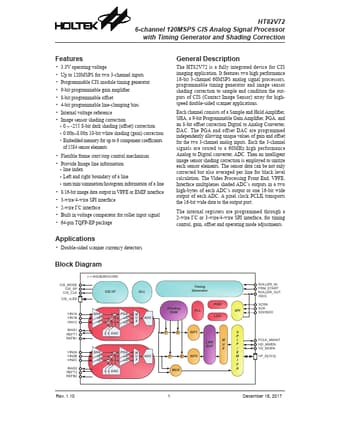

Preview of HT82V72 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
HT82V72
Manufacturer
Holtek Semiconductor
File Size
1.57 MB
Datasheet
HT82V72-HoltekSemiconductor.pdf
Description
6-channel 120MSPS CIS Analog Signal Processor
