HFD3029 Datasheet - Honeywell

Schmitt Input / Non-Inverting TTL Output Receiver

HFD3029 Features

* Converts fiber optic input signals to TTL totem pole outputs

* Sensitivity is 1.5 µW peak (-28.2 dBm) Single 5 V supply requirement Schmitt circuitry gives 17 dB dynamic range and low Pulse Width Distortion Opera

HFD3029 General Description

The HFD3029 is a sensitive Schmitt triggered optical receiver designed for use in short distance, 850 nm fiber optic systems. The bipolar integrated receiver circuit has internal voltage regulation. The HFD3029 also uses an internal photodiode. The TTL non-inverting output allows the HFD3029 to be d.

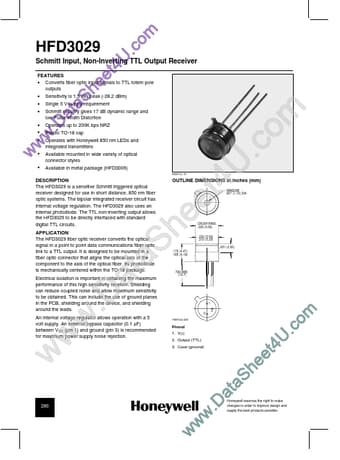

HFD3029 Datasheet (262.58 KB)

HFD3029 Datasheet Preview — Preview of HFD3029 PDF

Datasheet Details

Part number:

HFD3029

Manufacturer:

Honeywell

File Size:

262.58 KB

Description:

Schmitt input / non-inverting ttl output receiver.
