CS3205A0

Silicon N-Channel Power MOSFET

CS3205A0 Features

* l Fast Switching l Low ON Resistance(Rdson≤8mΩ) l Low Gate Charge (Typical Data:75nC) l Low Reverse transfer capacitances(Typical:75pF) l 100% Single Pulse avalanche energy Test Applications: Power switch circuit of adaptor and charger. Absolute(TJ= 25℃ unless otherwise specified): Symbol Paramete

CS3205A0 General Description

CS3205 A0, the silicon N-channel Enhanced VDMOSFETs, is obtained by the self-aligned planar Technology which reduce the conduction loss, improve switching performance and enhance the avalanche energy. The transistor can be used in various power switching circuit for system miniaturization and .

CS3205A0 Datasheet (1.01 MB)

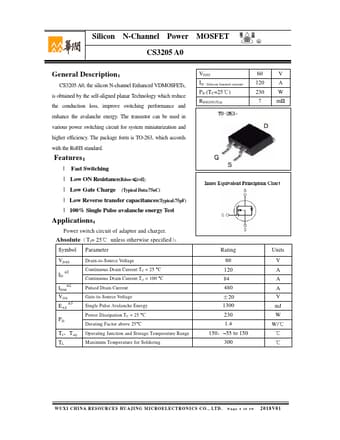

Preview of CS3205A0 PDF

Datasheet Details

Part number:

CS3205A0

Manufacturer:

Huajing Microelectronics

File Size:

1.01 MB

Description:

Silicon n-channel power mosfet.
