HY5V22GF - 4 Banks x 1M x 32Bit Synchronous DRAM

Name: HY5V22GF
SKU: HY5V22GF-568959

Hynix Semiconductor

📥 Download Datasheet

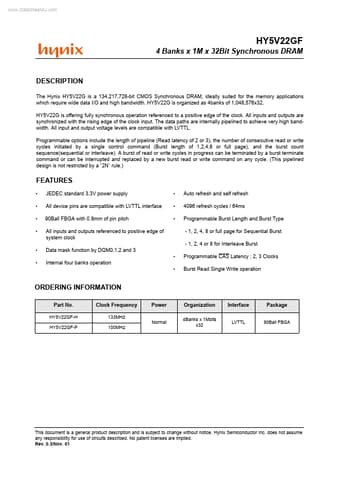

HY5V22GF Datasheet Preview — Preview of HY5V22GF PDF

Datasheet Details

Part number	HY5V22GF
Manufacturer	Hynix Semiconductor
File Size	379.64 KB
Description	4 Banks x 1M x 32Bit Synchronous DRAM
Datasheet	HY5V22GF_HynixSemiconductor.pdf

HY5V22GF Product details

Description

The Hynix HY5V22G is a 134,217,728-bit CMOS Synchronous DRAM, ideally suited for the memory applications which require wide data I/O and high bandwidth.

Features

JEDEC standard 3.3V power supply All device pins are compatible with LVTTL interface 90Ball FBGA with 0.8mm of pin pitch All inputs and outputs referenced to positive edge of system clock Data mask function by DQM0,1,2 and 3.
Internal four banks operation.
Burst Read Single Write operation Programmable CAS Latency ; 2, 3 Clocks.
Auto refresh and self refresh 4096 refresh cycles / 64ms Programmable Bu.
