AT1808 - 1.5A Ultra Low Dropout Regulator

Product Overview

Datasheet Details

Part number	AT1808
Manufacturer	IAT
File Size	709.62 KB
Description	1.5A Ultra Low Dropout Regulator
Datasheet	AT1808 Datasheet

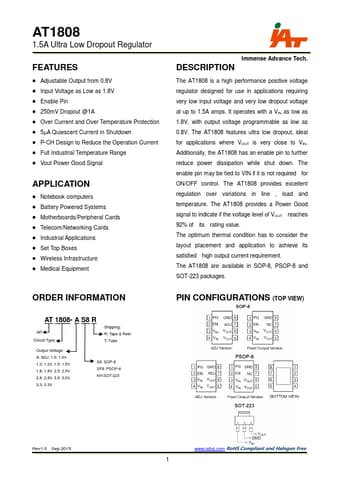

Additional preview pages of the AT1808 datasheet.

Product details

Description

The AT1808 is a high performance positive voltage regulator designed for use in applications requiring very low input voltage and very low dropout voltage at up to 1.5A amps.

Features

Adjustable Output from 0.8V Input Voltage as Low as 1.8V Enable Pin 250mV Dropout @1A Over Current and Over Temperature Protection 5µA Quiescent Current in Shutdown P-CH Design to Reduce the Operation Current Full Industrial Temperature Range Vout Power Good Signal.
