ICS81006I Datasheet, Outputs, ICS

ICS81006I Features

• Outputs
• Six LVCMOS/LVTTL outputs, 20Ω nominal output impedance
• Output Q5 can be selected for ÷1 or ÷2 frequency relative to the crystal frequency
• Output frequency

PDF File Details

Part number:

ICS81006I

Manufacturer:

ICS

File Size:

169.49kb

Download:

📄 Datasheet

Description:

Vcxo-to-6 lvcmos outputs. The ICS81006I is a high performance, low jitter/low phase noise VCXO and is a HiPerClockS™ member of the HiPerClockS™ family of high

ICS81006I Application

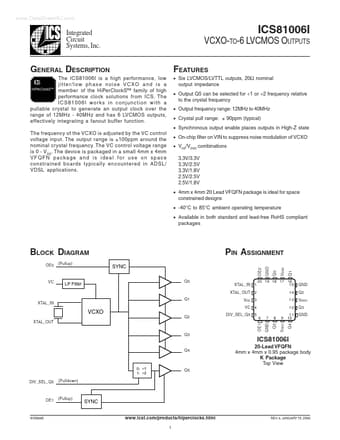

• Applications BLOCK DIAGRAM OE0 (Pullup) PIN ASSIGNMENT GND VDDO OE0 SYNC Q0 Q0 VC LP Filter XTAL_IN XTAL_OUT 1 2 3 4 5 20 19 18 17 16 15 1
