ICS844101I-312 - CRYSTAL-TO-LVDS 312.5MHZ FREQUENCY MARGINING SYNTHESIZER

ICS844101I-312 Description

www.DataSheet4U.com PRELIMINARY Integrated Circuit Systems, Inc.ICS844101I-312 FEMTOCLOCKS™ CRYSTAL-TO-LVDS 312.5MHZ FREQUENCY MARGINING SYNTHESI.
The ICS844101I-312 is a low phase-noise frequency margining synthesizer and is a memHiPerClockS™ ber of the HiPerClockS™ family of high performance cl.

ICS844101I-312 Features

* One 312.5MHz nominal LVDS output
* Selectable crystal oscillator interface designed for 25MHz, 18pF parallel resonant crystal or LVCMOS single-ended input
* Output frequency can be varied in 2% steps ± from nominal
* VCO range: 560MHz - 690MHz
* RMS phase ji

📥 Download Datasheet

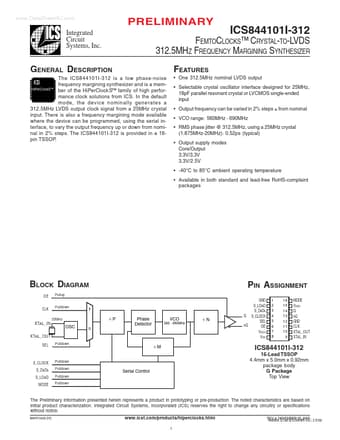

Preview of ICS844101I-312 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
ICS844101I-312
Manufacturer
ICS
File Size
199.04 KB
Datasheet
ICS844101I-312_ICS.pdf
Description
CRYSTAL-TO-LVDS 312.5MHZ FREQUENCY MARGINING SYNTHESIZER
