ICS8501 - Low Skew 1-to-16 Differential Current Mode Fanout Buffer

Product Overview

ICS

ICS8501 Low Skew 1-to-16 Differential Current Mode Fanout Buffer by ICS - Datasheet Preview — Datasheet preview – ICS8501

Datasheet Details

Part number	ICS8501
Manufacturer	ICS
File Size	228.43 KB
Description	Low Skew 1-to-16 Differential Current Mode Fanout Buffer
Datasheet	ICS8501 Datasheet

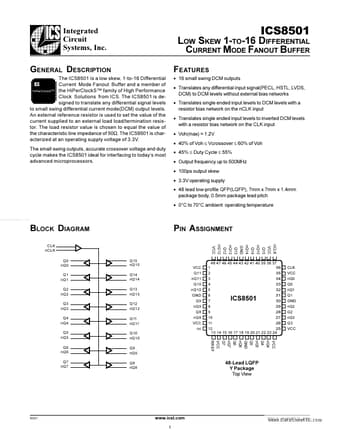

Additional preview pages of the ICS8501 datasheet.

Product details

Description

,&6 The small swing outputs, accurate crossover voltage and duty cycle makes the ICS8501 ideal for interfacing to todays most advanced microprocessors.www.DataSheet4U.com BLOCK DIAGRAM CLK nCLK Q0 nQ0 Q1 nQ1 Q2 nQ2 Q3 nQ3 Q4 nQ4 Q5 nQ5 Q6 nQ6 Q7 nQ7 Q15 nQ15 Q14 nQ14 Q13 nQ13 Q12 nQ12 Q11 nQ11 Q10 nQ10 Q9 nQ9 Q8 nQ8 PIN A SSIGNMENT nCLK VCC Q15 nQ15 Q14 nQ14 GND Q13 nQ13 Q12 nQ12 VCC VCC Q11 nQ11 Q10 nQ10 GND Q9 nQ9 Q8 nQ8 VCC nc 48 47 46 45 44 43 42 41 40 39 38 37 1 36 2 35 3 34 4 33 5

Features

16 small swing DCM outputs.
Translates any differential input signal(PECL, HSTL, LVDS, DCM) to DCM levels without external bias networks.
Translates single ended input levels to DCM levels with a resistor bias network on the nCLK input.
Translates single ended input levels to inverted DCM levels with a resistor bias network on the CLK input.
Voh(max) = 1.2V.
40% of Voh ≤ Vcrossover ≤ 60% of Voh.
45% ≤ Duty Cycle ≤ 55%.
Outp.
