ICS851S201I Datasheet - Renesas

Differential-to-HCSL Multiplexer

ICS851S201I Features

* Two differential HCSL output pairs

* Two selectable differential clock input pairs

* CLKx, nCLKx pairs can accept HCSL level inputs

* Low level input detection on selected input (latched)

* Maximum Input frequency: 250MHz

* Output skew: 5ps (typical)

ICS851S201I General Description

The ICS851S201I is a high-performance 2-input, 2-output Differential-to-HCSL Multiplexer. The ICS851S201I operates up to 250MHz and accepts HCSL and other low level differential inputs levels. Input level detection circuitry is available to flag input levels that drops below a specified value and on.

ICS851S201I Datasheet (624.00 KB)

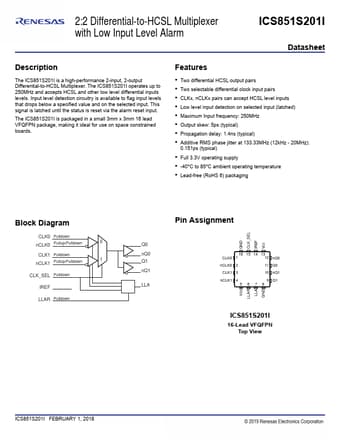

Preview of ICS851S201I PDF

Datasheet Details

Part number:

ICS851S201I

Manufacturer:

Renesas ↗

File Size:

624.00 KB

Description:

Differential-to-hcsl multiplexer.
