ICS8530-01 Datasheet, Buffer, ICST

ICS8530-01 Features

• Buffer
• 16 differential 3.3V LVPECL outputs
• CLK, nCLK input pair
• CLK, nCLK pair can accept the following differential input levels: LVDS, LVPECL, LVHSTL, SSTL, HCS

PDF File Details

Part number:

ICS8530-01

Manufacturer:

ICST

File Size:

152.53kb

Download:

📄 Datasheet

Description:

Lvpecl fanout buffer. The ICS8530-01 is a low skew, 1-to-16 Differential-to-3.3V LVPECL Fanout Buffer and a memHiPerClockS™ ber of the HiPerClockS ™ family

ICS8530-01 Application

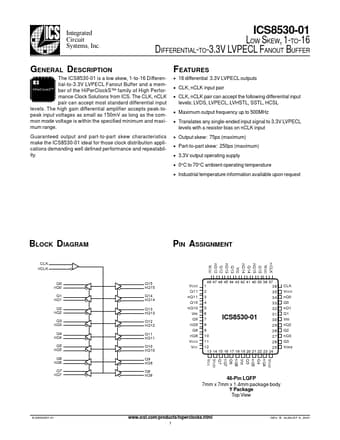

• Applications demanding well defined performance and repeatability. BLOCK DIAGRAM CLK nCLK PIN ASSIGNMENT nCLK VCCO Q15 nQ15 Q14 nQ14 VEE Q13 nQ13
