ICS853006 - LVPECL/ECL FANOUT BUFFER

ICS853006 Description

www.DataSheet4U.com Integrated Circuit Systems, Inc.ICS853006 LOW SKEW, 1-TO-6 DIFFERENTIAL-TO-2.5V/3.3V LVPECL/ECL FANOUT BUFFER .
The ICS853006 is a low skew, high performance 1-to-6 Differential-to-2.

ICS853006 Features

* 6 differential LVPECL outputs
* 1 differential PCLK, nPCLK input pair
* PCLK, nPCLK pair can accept the following differential input levels: LVPECL, LVDS, CML, SSTL
* Maximum output frequency: > 2GHz
* Output skew: 30ps (maximum)
* Part-to-part skew:

ICS853006 Applications

* demanding well defined performance and repeatability. ICS BLOCK DIAGRAM PCLK nPCLK Q0 nQ0 Q1 nQ1 Q2 nQ2 Q3 nQ3 Q4 nQ4 Q5 nQ5 PIN ASSIGNMENT VCC nQ0 Q0 nQ1 Q1 nQ2 Q2 VCC PCLK nPCLK 1 2 3 4 5 6 7 8 9 10 20 19 18 17 16 15 14 13 12 11 VCC Q5 nQ5 Q4 nQ4 Q3 nQ3 VCC VEE VBB V BB ICS853006 20-Lead TSSO

📥 Download Datasheet

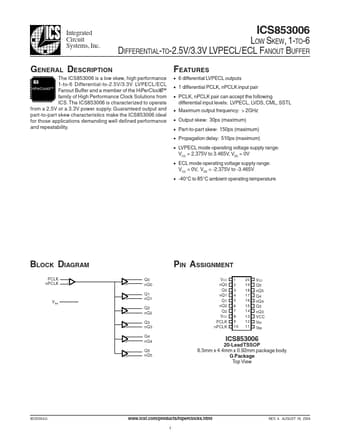

Preview of ICS853006 PDF
