ICS853S013I

LVPECL/ECL Fanout Buffer

IDT

ICS853S013I Features

* Two differential LVPECL/ECL bank outputs

* Two differential LVPECL clock input pairs

* PCLKx, nPCLKx pairs can accept the following differential input levels: LVPECL, LVDS, CML, SSTL

* Output frequency: 2GHz (maximum)

* Translates any single-ended input sign

ICS853S013I General Description

The ICS853S013I is a low skew, high performance dual 1-to-3 Differential-to-2.5V, 3.3V LVPECL/ ECL Fanout Buffer. The ICS853S013I operates with a positive or negative power supply at 2.5V or 3.3V. Guaranteed output and part-to-part skew characteristics make the ICS853S013I ideal for those clock dist.

ICS853S013I Datasheet (703.94 KB)

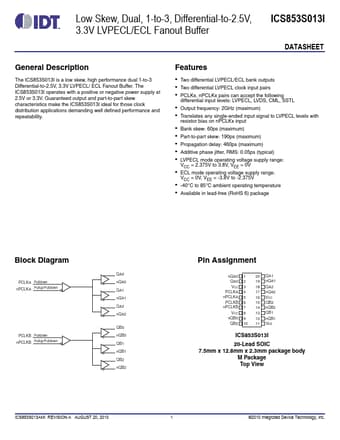

ICS853S013I Datasheet Preview — Preview of ICS853S013I PDF

Datasheet Details

Part number:

ICS853S013I

Manufacturer:

IDT

File Size:

703.94 KB

Description:

Lvpecl/ecl fanout buffer.
