ICS85301 - 2:1 DIFFERENTIAL-TO-LVPECL MULTIPLEXER

ICS85301 Description

www.DataSheet4U.com Integrated Circuit Systems, Inc.ICS85301 2:1 DIFFERENTIAL-TO-LVPECL MULTIPLEXER .
The ICS85301 is a high performance 2:1 Differential-to-LVPECL Multiplexer and a member of the HiPerClockS™ HiPerClockS™ family of High Performance Clo.

ICS85301 Features

* 2:1 LVPECL MUX
* One LVPECL output
* Two differential clock inputs can accept: LVPECL, LVDS, CML
* Maximum input/output frequency: 3GHz
* Translates LVCMOS/LVTTL input signals to LVPECL levels by using a resistor bias network on nPCLK0, nPCLK0
* Prop

ICS85301 Applications

* the maximum input voltage for PCLKx, nPCLKx is VCC + 0.3V. NOTE 3: Outputs terminated with 50Ω to VCC - 2V. . 85301AK www. icst. com/products/hiperclocks. html 3 REV. A JANUARY 16, 2006 Integrated Circuit Systems, Inc. ICS85301 2:1 DIFFERENTIAL-TO-LVPECL MULTIPLEXER Test Conditions PCLK0, nPCLK0,

📥 Download Datasheet

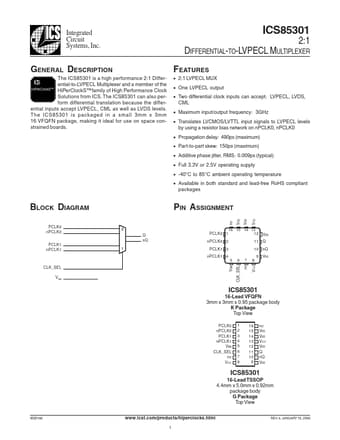

Preview of ICS85301 PDF
