ICS853013 - LVPECL/ECL FANOUT BUFFER

ICS853013 Description

www.DataSheet4U.com Integrated Circuit Systems, Inc.ICS853013 LOW SKEW, DUAL, 1-TO-3, DIFFERENTIAL-TO2.5V/3.3V/5V LVPECL/ECL FANOUT BUFFER .
The ICS853013 is a low skew, high performance dual 1-to-3 Differential-to-2.

ICS853013 Features

* Two differential LVPECL / ECL bank outputs
* Two differential LVPECL clock input pairs
* PCLKx, nPCLKx pairs can accept the following differential input levels: LVPECL, LVDS, CML, SSTL
* Output frequency: >2GHz (typical)
* Translates any single ended input s

ICS853013 Applications

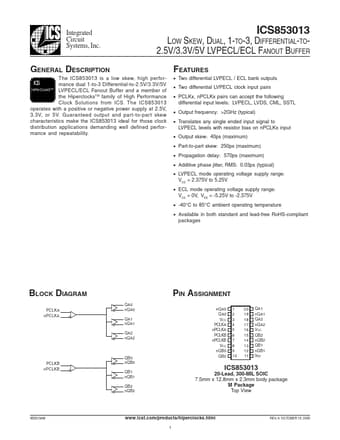

* demanding well defined performance and repeatability. IC S BLOCK DIAGRAM PCLKA nPCLKA QA0 nQA0 QA1 nQA1 QA2 nQA2 PIN ASSIGNMENT nQA0 QA0 VCC PCLKA nPCLKA PCLKB nPCLKB VCC nQB0 QB0 1 2 3 4 5 6 7 8 9 10 20 19 18 17 16 15 14 13 12 11 QA1 nQA1 QA2 nQA2 VCC QB2 nQB2 QB1 nQB1 VEE PCLKB nPCLKB QB0 nQB
