ICS8530-01 - Differential-to-3.3V LVPECL Fanout Buffer

Product Overview

Integrated Device Technology

📥 Download Datasheet

ICS8530-01 Differential-to-3.3V LVPECL Fanout Buffer by Integrated Device Technology - Datasheet Preview — Datasheet preview – ICS8530-01

Datasheet Details

Part number	ICS8530-01
Manufacturer	Integrated Device Technology
File Size	132.49 KB
Description	Differential-to-3.3V LVPECL Fanout Buffer
Datasheet	ICS8530-01 Datasheet

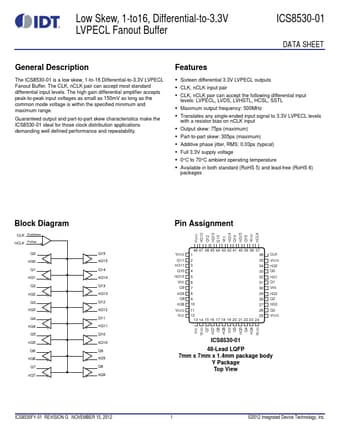

Additional preview pages of the ICS8530-01 datasheet.

Product details

Description

The ICS8530-01 is a low skew, 1-to-16 Differential-to-3.3V LVPECL Fanout Buffer.

Features

Sixteen differential 3.3V LVPECL outputs.
CLK, nCLK input pair.
CLK, nCLK pair can accept the following differential input levels: LVPECL, LVDS, LVHSTL, HCSL, SSTL.
Maximum output frequency: 500MHz.
Translates any single-ended input signal to 3.3V LVPECL levels with a resistor bias on nCLK input.
Output skew: 75ps (maximum).
Part-to-part skew: 305ps (maximum).
Additive phase jitter, RMS: 0.03ps (typical).
Full 3.3V.
