Datasheet Details
- Part number
- ICS853011
- Manufacturer
- ICST
- File Size
- 239.35 KB
- Datasheet
- ICS853011_ICST.pdf
- Description
- LVPECL/ECL FANOUT BUFFER
ICS853011 Description

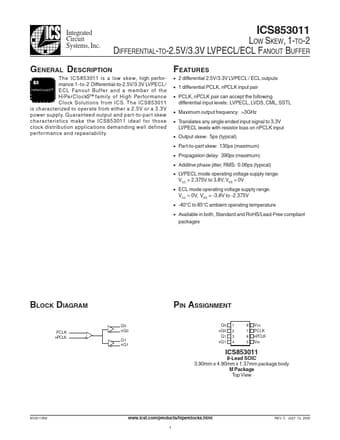

www.DataSheet4U.com Integrated Circuit Systems, Inc.ICS853011 LOW SKEW, 1-TO-2 DIFFERENTIAL-TO-2.5V/3.3V LVPECL/ECL FANOUT BUFFER .
The ICS853011 is a low skew, high performance 1-to-2 Differential-to-2.
ICS853011 Features
* 2 differential 2.5V/3.3V LVPECL / ECL outputs
* 1 differential PCLK, nPCLK input pair
* PCLK, nPCLK pair can accept the following differential input levels: LVPECL, LVDS, CML, SSTL
* Maximum output frequency: >3GHz
* Translates any single ended input signal
ICS853011 Applications
* demanding well defined perfor mance and repeatability. ICS
BLOCK DIAGRAM
PCLK nPCLK Q0 nQ0 Q1 nQ1
PIN ASSIGNMENT
Q0 nQ0 Q1 nQ1 1 2 3 4 8 7 6 5 Vcc PCLK nPCLK VEE
ICS853011
8-Lead SOIC 3.90mm x 4.90mm x 1.37mm package body M Package Top View
853011BM
www. icst. com/products/hiperclocks. html
1
