ICS853S012I

LVPECL Clock/Data Multiplexer

IDT

ICS853S012I Features

* High speed 12:1 differential multiplexer

* One differential 3.3V or 2.5V LVPECL output

* Twelve selectable differential clock or data inputs

* CLKx, nCLKx pairs can accept the following differential input levels: LVPECL, LVDS, CML

* Maximum output frequency:

ICS853S012I General Description

The ICS853S012I is an 12:1 Differential-to-3.3V or 2.5V LVPECL Clock/Data Multiplexer which can operate up to 3.2GHz. The ICS853S012I has twelve differential selectable clock inputs. The CLK, nCLK input pairs can accept LVPECL, LVDS or CML levels. The fully differential architecture and low propagat.

ICS853S012I Datasheet (822.25 KB)

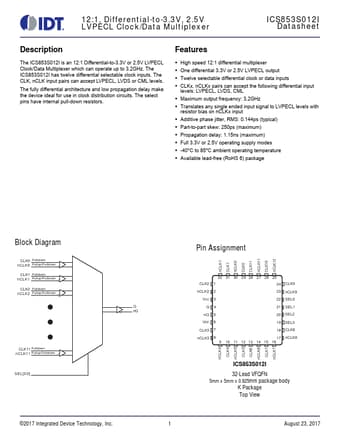

ICS853S012I Datasheet Preview — Preview of ICS853S012I PDF

Datasheet Details

Part number:

ICS853S012I

Manufacturer:

IDT

File Size:

822.25 KB

Description:

Lvpecl clock/data multiplexer.
