ICS853S01I

2:1 Differential-to-LVPECL Multiplexer

ICS853S01I Features

* One LVPECL output pair

* Two selectable differential LVPECL clock inputs

* PCLKx, nPCLKx pairs can accept the following differential input levels: LVPECL, LVDS, CML

* Translates LVCMOS/LVTTL input signals to LVPECL levels by using a resistor bias network on nPCLKx,

ICS853S01I General Description

The ICS853S01I is a high performance 2:1 Differential-to-LVPECL Multiplexer. The ICS853S01I can also perform differential translation because the differential inputs accept LVPECL, LVDS and CML levels. The ICS853S01I is packaged in a small 3mm x 3mm 16 VFQFN package, making it ideal for use on space.

ICS853S01I Datasheet (456.99 KB)

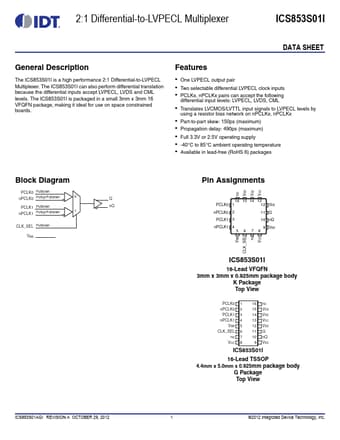

Preview of ICS853S01I PDF

Datasheet Details

Part number:

ICS853S01I

Manufacturer:

IDT

File Size:

456.99 KB

Description:

2:1 differential-to-lvpecl multiplexer.
