ICS853S011BI Datasheet - IDT

ICS853S011BI LVPECL/ECL Fanout Buffer

The ICS853S011BI is a low skew, high performance ICS 1-to-2 Differential-to-2.5V/3.3V LVPECL/ECL Fanout HiPerClockS™ Buffer. The ICS853S011BI is characterized to operate from either a 2.5V or a 3.3V power supply. Guaranteed output and part-to-part skew characteristics make the ICS853S011BI ideal for.

ICS853S011BI Features

* Two differential 2.5V, 3.3V LVPECL/ECL outputs

* One differential PCLK, nPCLK input pair

* PCLK, nPCLK pairs can accept the following differential input levels: LVPECL, LVDS, CML, SSTL

* Maximum output frequency: >2.5GHz

* Translates any single-ended input s

ICS853S011BI-IDT.pdf

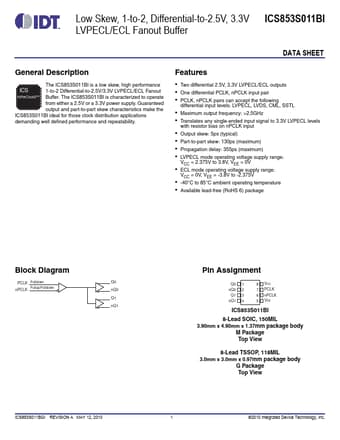

Preview of ICS853S011BI PDF
ICS853S011BI Datasheet Preview Page 2 ICS853S011BI Datasheet Preview Page 3

Datasheet Details

Part number:

ICS853S011BI

Manufacturer:

IDT

File Size:

747.99 KB

Description:

Lvpecl/ecl fanout buffer.
