ICS853S014I

LVPECL/ECL Fanout Buffer

IDT

ICS853S014I Features

* Five differential LVPECL/ECL outputs

* Two selectable differential LVPECL clock inputs

* PCLKx, nPCLKx pairs can accept the following differential input levels: LVPECL, LVDS, CML, SSTL

* Maximum output frequency: 2GHz

* Output skew: 55ps (maximum)

ICS853S014I General Description

The ICS853S014I is a low skew, high performance 1-to-5, 2.5V/3.3V Differential-to-LVPECL/ECL Fanout Buffer. The ICS853S014I has two selectable clock inputs. Guaranteed output and part-to-part skew characteristics make the ICS853S014I ideal for those applications demanding well defined performance an.

ICS853S014I Datasheet (221.12 KB)

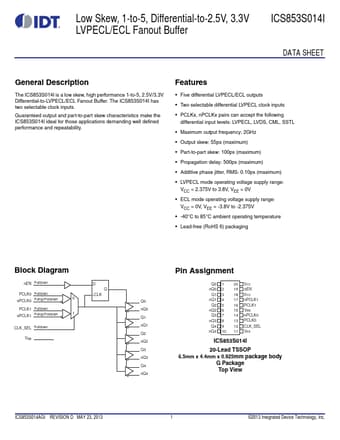

ICS853S014I Datasheet Preview — Preview of ICS853S014I PDF

Datasheet Details

Part number:

ICS853S014I

Manufacturer:

IDT

File Size:

221.12 KB

Description:

Lvpecl/ecl fanout buffer.
