ICS853001 - LVPECL/ECL BUFFER

ICS853001 Description

www.DataSheet4U.com Integrated Circuit Systems, Inc.ICS853001 1:1, DIFFERENTIAL LVPECL-TO2.5V, 3.3V, 5V LVPECL/ECL BUFFER .
The ICS853001 is a 1:1 Differential LVPECLto-LVPE C L B u f fe r a n d a m e m b e r o f t h e HiPerClockS™ HiPerClock S ™ family of High Perfor mance.

ICS853001 Features

* 1:1 Differential LVPECL-to-LVPECL / ECL buffer
* 1 LVPECL clock output pair
* 1 Differential LVPECL PCLK, nPCLK input pair
* PCLK, nPCLK pair can accept the following differential input levels: LVPECL, LVDS, CML
* Maximum output frequency: >2.5GHz

ICS853001 Applications

* the maximum input voltage for PCLK, nPCLK is VCC + 0.3V. NOTE 3: Outputs terminated with 50Ω to VCC - 2V. TABLE 4. AC CHARACTERISTICS, VCC = 0V; VEE = -5.25V TO -2.375V Symbol Parameter fMAX t PD Output Frequency Propagation Delay; NOTE 1 Par t-to-Par t Skew; NOTE 2, 3 Buffer Additive Phase Jitter

📥 Download Datasheet

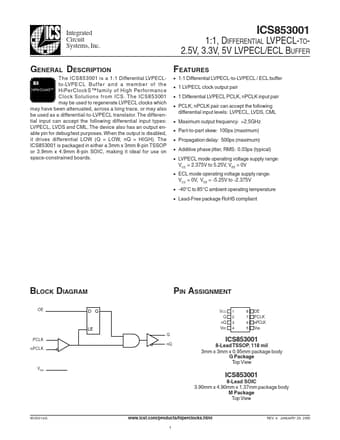

Preview of ICS853001 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
ICS853001
Manufacturer
ICST
File Size
275.97 KB
Datasheet
ICS853001_ICST.pdf
Description
LVPECL/ECL BUFFER
