ICS8536-01 Datasheet - Integrated Device Technology

ICS8536-01 - 1-to-6 Crystal / LVCMOS / Differential-to-3.3V / 2.5V LVPECL Fanout Buffer

The ICS8536-01 is a lo w skew, high performance 1-to-6 Selectable Crystal, Single-Ended, or Diff erential Input-to3.3V, 2.5V LVPECL Fanout Buffer.

The ICS8536-01 has selectable cr ystal, single ended or diff erential clock inputs.

The single ended cloc k input accepts LVCMOS or LVTTL input levels an

ICS8536-01 Features

* Six 3.3V, 2.5V LVPECL outputs

* Selectable crystal oscillator, differential CLK1, nCLK1 pair or LVCMOS/LVTTL clock input

* CLK1, nCLK pair can accept the f ollowing differential input levels: LVPECL, LVDS, LVHSTL, SSTL, HCSL

* Maximum output frequency: 700MHz

ICS8536-01-IntegratedDeviceTechnology.pdf

Preview of ICS8536-01 PDF

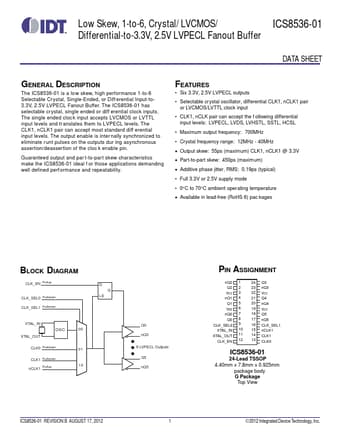

ICS8536-01 Datasheet Preview Page 2 ICS8536-01 Datasheet Preview Page 3

Datasheet Details

Part number:

ICS8536-01

Manufacturer:

Integrated Device Technology

File Size:

313.79 KB

Description:

1-to-6 crystal / lvcmos / differential-to-3.3v / 2.5v lvpecl fanout buffer.
