ICS853S310I - 1-to-8 Differential-to- 3.3V LVPECL/ECL Fanout Buffer

Product Overview

Integrated Device Technology

📥 Download Datasheet

ICS853S310I 1-to-8 Differential-to- 3.3V LVPECL/ECL Fanout Buffer by Integrated Device Technology - Datasheet Preview — Datasheet preview – ICS853S310I

Datasheet Details

Part number	ICS853S310I
Manufacturer	Integrated Device Technology
File Size	757.41 KB
Description	1-to-8 Differential-to- 3.3V LVPECL/ECL Fanout Buffer
Datasheet	ICS853S310I Datasheet

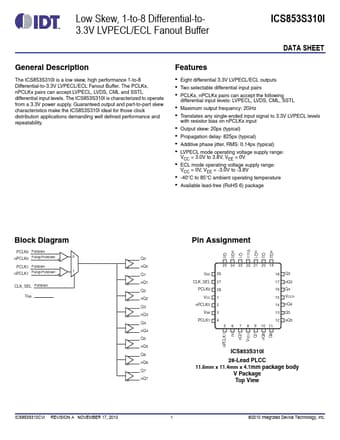

Additional preview pages of the ICS853S310I datasheet.

Product details

Description

The ICS853S310I is a low skew, high performance 1-to-8 Differential-to-3.3V LVPECL/ECL Fanout Buffer.

Features

Eight differential 3.3V LVPECL/ECL outputs.
Two selectable differential input pairs.
PCLKx, nPCLKx pairs can accept the following differential input levels: LVPECL, LVDS, CML, SSTL.
Maximum output frequency: 2GHz.
Translates any single-ended input signal to 3.3V LVPECL levels with resistor bias on nPCLKx input.
Output skew: 20ps (typical).
Propagation delay: 825ps (typical).
Additive phase jitter, RMS: 0.14ps (typical).
