MPC92439KLF

LVPECL Clock Syntheesizer

MPC92439KLF Features

* 3.125 MHz to 900 MHz synthesized clock output signal Differential LVPECL output LVCMOS compatible control inputs On-chip crystal oscillator for refere

MPC92439KLF General Description

The internal crystal oscillator uses the external quartz crystal as the basis of its frequency reference. The frequency of the internal crystal oscillator or external reference clock signal is multiplied by the PLL. The VCO within the PLL operates over a range of 400 to 900 MHz. Its output is scale.

MPC92439KLF Datasheet (806.23 KB)

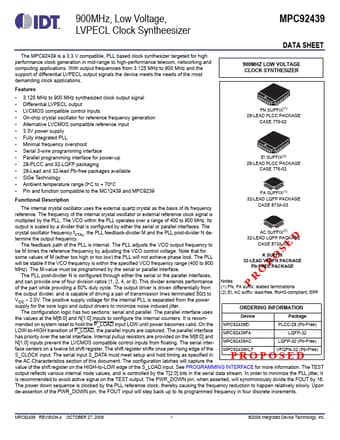

Preview of MPC92439KLF PDF

Datasheet Details

Part number:

MPC92439KLF

Manufacturer:

IDT

File Size:

806.23 KB

Description:

Lvpecl clock syntheesizer.
900MHz, Low Voltage, LVPECL Clock Syntheesizer The MPC92439 is a 3.3 V compatible, PLL based clock synthesizer targeted for high performance clock gen.
