MPC9229 - 400 MHz Low Voltage PECL Clock Synthesizer

Motorola

MPC9229 Description

MOTOROLA SEMICONDUCTOR TECHNICAL DATA Freescale Semiconductor, Inc.Order Number: MPC9229/D Rev 1 03/2003 400 MHz Low Voltage PECL Clock Synthesiz.
The internal crystal oscillator uses the external quartz crystal as the basis of its frequency reference.

MPC9229 Features

* 25 MHz to 400 MHz synthesized clock output signal Differential PECL output LVCMOS compatible control inputs On-chip crystal oscillator for reference frequency generation 3.3V power supply Fully integrated PLL Minimal frequency overshoot Serial 3-wire programming interface Parallel programming interf

MPC9229 Applications

* With output frequencies from 25 MHz to 400 MHz and the support of differential PECL output signals the device meets the needs of the most demanding clock applications. MPC9229 400 MHZ LOW VOLTAGE CLOCK SYNTHESIZER Freescale Semiconductor, Inc

📥 Download Datasheet

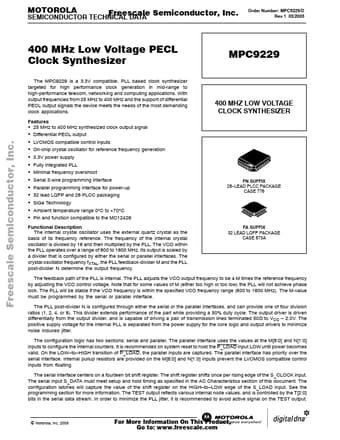

MPC9229 Datasheet Preview — Preview of MPC9229 PDF

Datasheet Details

Part number: MPC9229
Manufacturer: Motorola
File Size: 362.94 KB
Datasheet: MPC9229-Motorola.pdf
Description: 400 MHz Low Voltage PECL Clock Synthesizer
