MPC9108 - MULTIPLE OUTPUT CLOCK SYNTHESIZER

Motorola

MPC9108 Description

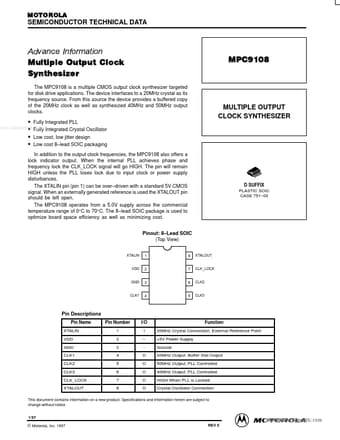

MOTOROLA SEMICONDUCTOR TECHNICAL DATA Advance Information Multiple Output Clock Synthesizer The MPC9108 is a multiple CMOS output clock synthesizer .
Pin Name XTALIN VDD GND CLK1 CLK2 CLK3 CLK_LOCK XTALOUT Pin Number 1 2 3 4 5 6 7 8 I/O I. O O O O O Function 20MHz Crystal Connect.

MPC9108 Applications

* The device interfaces to a 20MHz crystal as its frequency source. From this source the device provides a buffered copy of the 20MHz clock as well as synthesized 40MHz and 50MHz output clocks. MPC9108
* Fully Integrated PLL www. DataSheet4U. com
* Fully Integrated Crystal Oscillator

📥 Download Datasheet

MPC9108 Datasheet Preview — Preview of MPC9108 PDF

Datasheet Details

Part number: MPC9108
Manufacturer: Motorola
File Size: 81.98 KB
Datasheet: MPC9108_Motorola.pdf
Description: MULTIPLE OUTPUT CLOCK SYNTHESIZER
