MPC911 Datasheet - Motorola

MPC911 LOW-VOLTAGE 1:9 DIFFERENTIAL ECL/HSTL TO HSTL CLOCK DRIVER

MOTOROLA SEMICONDUCTOR TECHNICAL DATA Low-Voltage 1:9 Differential ECL/HSTL to HSTL Clock Driver The MPC9111 is a low skew 1 to 9 differential HSTL compatible output fanout buffer. The device is functionally equivalent to the MC100LVE111 device. The device accepts either LVPECL or HSTL compatible input levels and provides 9 low skew differential HSTL compatible outputs. The device operates from a single 3.3V VCC supply. MPC911 800ps Part to Part Skew.

MPC911 Datasheet (87.16 KB)

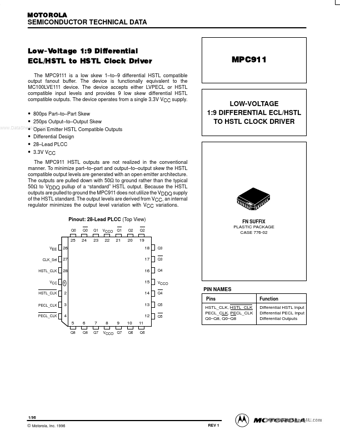

Preview of MPC911 PDF
MPC911 Datasheet Preview Page 2 MPC911 Datasheet Preview Page 3

Datasheet Details

Part number:

MPC911

Manufacturer:

Motorola

File Size:

87.16 KB

Description:

Low-voltage 1:9 differential ecl/hstl to hstl clock driver.
