MPC92429

400 MHz Low Voltage PECL Clock Synthesizer

MPC92429 Features

* 25 MHz to 400 MHz synthesized clock output signal Differential PECL output LVCMOS compatible control inputs On-chip crystal oscillator for reference frequency generation 3.3V power supply Fully integrated PLL Minimal frequency overshoot Serial 3-wire programming interface Parallel programming interf

MPC92429 General Description

The internal crystal oscillator uses the external quartz crystal as the basis of its frequency reference. The frequency of the internal crystal oscillator is divided by 16 and then multiplied by the PLL. The VCO within the PLL operates over a range of 200 to 400 MHz. Its output is scaled by a divide.

MPC92429 Datasheet (212.35 KB)

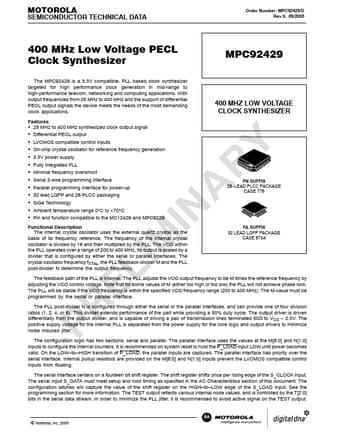

Preview of MPC92429 PDF

Datasheet Details

Part number:

MPC92429

Manufacturer:

Motorola

File Size:

212.35 KB

Description:

400 mhz low voltage pecl clock synthesizer.
MOTOROLA SEMICONDUCTOR TECHNICAL DATA Order Number: MPC92429/D Rev 0, 09/2003 400 MHz Low Voltage PECL Clock Synthesizer The MPC92429 is a 3.3V com.
