IL7150

Light Emitting Diode (LED) Driver

IL7150 Features

* Supply voltage from 4.0 to 40 V

* Output driving current up to 0.8 A (IL7150A), 1.5 A (IL7150)

* Current consumption 4 mA

* ESD protection up to 2kV

* Temperature range from - 40 to +85 C

* Only 5 external components required TECHNICAL DATA IL7150, IL7150A TO-263-5L IL715

IL7150 General Description

IL7150, IL7150A (functional equivalent AMC7150 of ADDtek) - LED (Light Emitting Diode) driver with peak output current 0.8A (IL7150A) & 1.5A (IL7150). Microcircuit designed for driving of power LEDs in the wide range of supply voltages and load currents with peak output currents 0.8 & 1.5A. Main app.

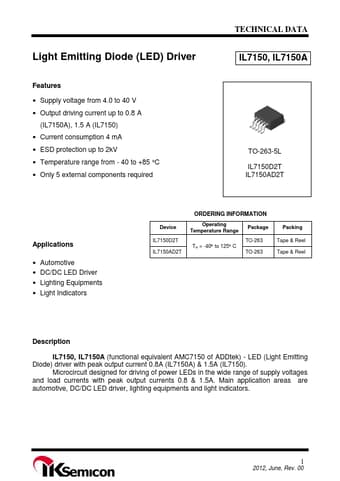

IL7150 Datasheet (282.00 KB)

Preview of IL7150 PDF

Datasheet Details

Part number:

IL7150

Manufacturer:

IK Semiconductor

File Size:

282.00 KB

Description:

Light emitting diode (led) driver.
