IL712

High Speed Two-Channel Digital Isolators

NVE Corporation

IL712 Features

* High speed: 150 Mbps typical (S-Series)

* High temperature:

* 40°C to +125°C (T-Series and VE-Series)

* Very high isolation voltage: 6 kVRMS (VE-Series)

* High working voltage: 1 kVRMS per VDE V 0884-10 (VE-Series)

* 50 kV/μs typ.; 30 kV/μs min. commo

IL712 General Description

NVE’s IL700 family of high-speed digital isolators are CMOS devices manufactured with NVE’s patented
* IsoLoop® spintronic Giant Magnetoresistive (GMR) technology. A unique ceramic/polymer composite barrier provides excellent isolation and virtually unlimited barrier life. The IL711S and IL712S a.

IL712 Datasheet (655.06 KB)

IL712 Datasheet Preview — Preview of IL712 PDF

Datasheet Details

Part number:

IL712

Manufacturer:

NVE Corporation

File Size:

655.06 KB

Description:

High speed two-channel digital isolators.

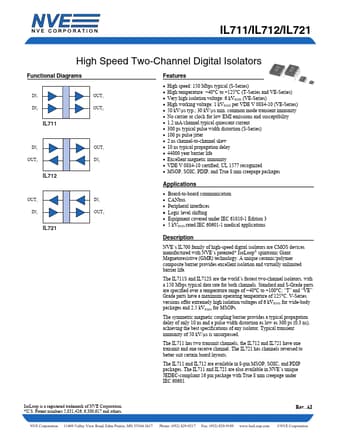

IL711/IL712/IL721 High Speed Two-Channel Digital Isolators Functional Diagrams IN1 IN2 IL711 OUT1 OUT2 IN1 OUT2 IL712 OUT1 IN2 OUT1 IN2 IL721 .
