IL710T

T-Series Wide Temperature Range High Speed Digital Coupler

NVE

IL710T Features

* Wide Temperature Range -40°C to +125°C

* +5V/+3.3V CMOS/TTL Compatible

* High Speed: 110 MBd

* 2500VRMS Isolation (1 Min.)

* 2 ns Typical Pulse Width Distortion

* 4 ns Typical Propagation Delay Skew

* 10 ns Typical Propagation Delay

* 30 kV/us Typical Common Mode Re

IL710T General Description

NVE's family of high-speed digital isolators are CMOS devices created by integrating active circuitry and our GMR-based and patented
* IsoLoop® technology. The IL710T offers the user the widest temperature range available in digital couplers. The symmetric magnetic coupling barrier provides a typ.

IL710T Datasheet (553.93 KB)

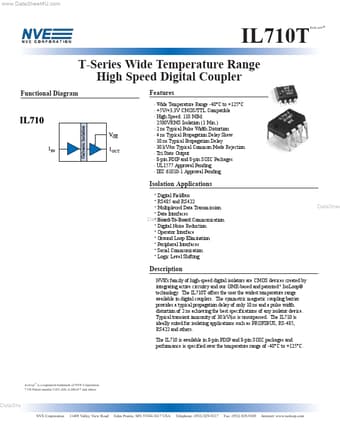

IL710T Datasheet Preview — Preview of IL710T PDF

Datasheet Details

Part number:

IL710T

Manufacturer:

NVE

File Size:

553.93 KB

Description:

T-series wide temperature range high speed digital coupler.
