IL715 (IL715 - IL717) Four Channel Digital Isolators

The IL715, IL716 and IL717 series of 4 *channel digital isolators provide the designer with the most compact isolated logic devices yet available. These isolators are packaged in three options: IL715 with four unidirectional channels, IL716 with two channels in one direction and two channels .

IL715 Features

* ISOLOOP® Functional Diagram IL715 1IN 2IN 3IN 4IN Galvanic Isolation 1OUT 2OUT 3OUT 4OUT

* +5 and 3.3V CMOS Compatible

* 2500 VRMS Isolation (1 min)

* 2 ns Typical Pulse Width Distortion

* 10 ns Typical Propagation Delay

* 2 ns Channel to Channel Skew

* 30 kV/µs Typical

IL715 Datasheet (168.16 KB)

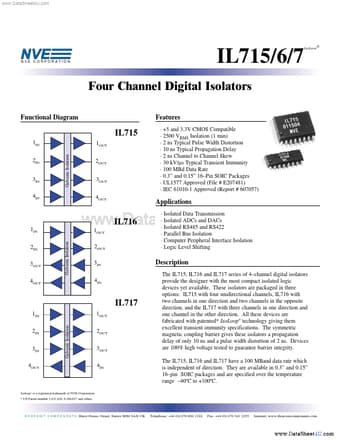

IL715 Datasheet Preview — Preview of IL715 PDF

Datasheet Details

Part number:

IL715

Manufacturer:

NVE

File Size:

168.16 KB

Description:

(il715 - il717) four channel digital isolators.
