IN74AC08 Datasheet - IK Semiconductor

IN74AC08 Quad 2-Input AND Gate

TECHNICAL DATA Quad 2-Input AND Gate High-Speed Silicon-Gate CMOS The IN74AC08 is identical in pinout to the LS/ALS08, HC/HCT08. The device inputs are compatible with standard CMOS outputs; with pullup resistors, they are compatible with LS/ALS outputs. Outputs Directly Interface to CMOS, NMOS, and TTL Operating Voltage Range: 2.0 to 6.0 V Low Input Current: 1.0 µA; 0.1 µA @ 25°C High Noise Immunity Characteristic of CMOS Devices Outputs Source/.

IN74AC08_IKSemiconductor.pdf

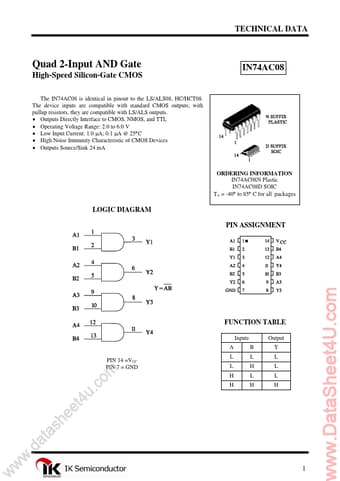

Preview of IN74AC08 PDF
IN74AC08 Datasheet Preview Page 2 IN74AC08 Datasheet Preview Page 3

Datasheet Details

Part number:

IN74AC08

Manufacturer:

IK Semiconductor

File Size:

223.74 KB

Description:

Quad 2-input and gate.
