IN74AC139 Datasheet - IK Semiconductor

IN74AC139 Dual 2-4 Decoder/Demultiplexer

TECHNICAL DATA Dual 1-of-4 Decoder/Demultiplexer High-Speed Silicon-Gate CMOS IN74AC139 The IN74AC139 is identical in pinout to the LS/ALS139, HC/HCT139. The device inputs are compatible with standard CMOS outputs; with pullup resistors, they are compatible with LS/ALS outputs. This device consists of two independent 1-of-4 decoders, each of which decodes a two-bit Address to one-of-four active-low outputs. Active-low Selects are provided to facilitate the demultiplexing and cascading functio.

IN74AC139 Datasheet (244.66 KB)

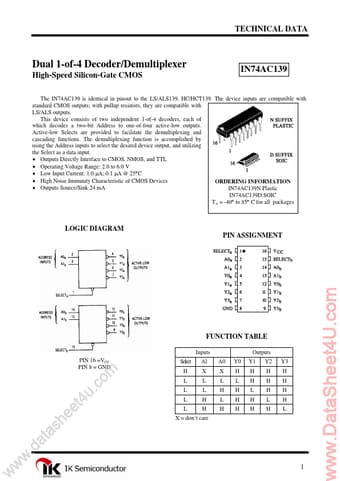

Preview of IN74AC139 PDF
IN74AC139 Datasheet Preview Page 2 IN74AC139 Datasheet Preview Page 3

Datasheet Details

Part number:

IN74AC139

Manufacturer:

IK Semiconductor

File Size:

244.66 KB

Description:

Dual 2-4 decoder/demultiplexer.
