IN74AC164 Datasheet - IK Semiconductor

IN74AC164 8-Bit Serial-In Parallel-Out Shift Register

TECHNICAL DATA IN74AC164 8-Bit Serial-Input/Parallel-Output Shift register High-Speed Silicon-Gate CMOS The IN74AC164 is identical in pinout to the LS/ALS164, HC/HCT164. The device inputs are compatible with standard CMOS outputs; with pullup resistors, they are compatible with LS/ALS outputs. The IN74AC164 is an 8-bit, serial-input to parallel-output shift register. Two serial data inputs, A1 and A2, are provided so that one input may be used as a data enable. Data is entered on each rising e.

IN74AC164_IKSemiconductor.pdf

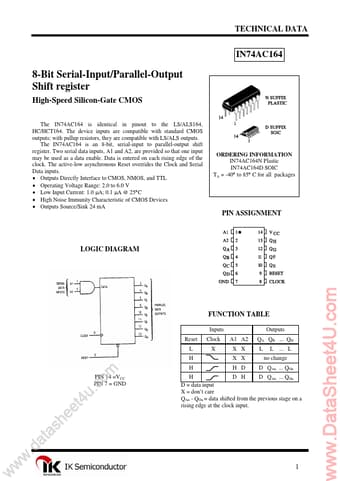

Preview of IN74AC164 PDF
IN74AC164 Datasheet Preview Page 2 IN74AC164 Datasheet Preview Page 3

Datasheet Details

Part number:

IN74AC164

Manufacturer:

IK Semiconductor

File Size:

259.88 KB

Description:

8-bit serial-in parallel-out shift register.
