IN74VHC125 Datasheet - IK Semiconductor

Quad 3-State Buffer

IN74VHC125 Features

* Supply voltage range 2.0 to 5.5 V.

* Output current 8 mA.

* Low consumption current: 0.2 mkA (typical value) at Та = 25 °С.

* Latchup current not less than 300 mA at Та = 85 °С.

* Tolerable value of static potential not less than 2000 V as per human body mo

IN74VHC125 General Description

in IN74VHC125 Pin No. 01 02 03 04 05 06 07 08 09 10 11 12 13 14 Symbol G1 A1 Y1 G2 A2 Y2 GND Y3 A3 G3 Y4 A4 G4 VCC Description Input ENABLE OUTPUT Input Output Input ENABLE OUTPUT Input Output Common output Output Input Input ENABLE OUTPUT Output Input Input ENABLE OUTPUT Supply output from voltage .

IN74VHC125 Datasheet (268.54 KB)

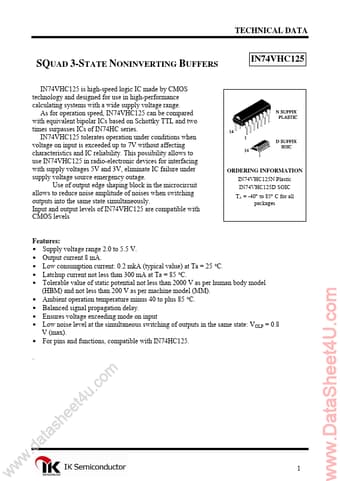

IN74VHC125 Datasheet Preview — Preview of IN74VHC125 PDF

Datasheet Details

Part number:

IN74VHC125

Manufacturer:

IK Semiconductor

File Size:

268.54 KB

Description:

Quad 3-state buffer.
TECHNICAL DATA SQUAD 3-STATE NONINVERTING BUFFERS IN74VHC125 is high-speed logic IC made by CMOS technology and designed for use in high-performance .
