IN74VHC126 Datasheet - IK Semiconductor

Quad 3-State Buffer

IN74VHC126 Features

* :

* . Supply voltage range 2.0 to 5.5 V. Output current 8 mA. Low consumption current: 0.2 mkA (typical value) at Та = 25 °С. Latchup current not less than 300 mA at Та = 85 °С. Tolerable value of stati

IN74VHC126 General Description

in IN74VHC126 Pin No. 01 02 03 04 05 06 07 08 09 10 11 12 13 14 Symbol G1 A1 Y1 G2 A2 Y2 GND Y3 A3 G3 Y4 A4 G4 VCC Description Input ENABLE OUTPUT Input Output Input ENABLE OUTPUT Input Output Common output Output Input Input ENABLE OUTPUT Output Input Input ENABLE OUTPUT Supply output from voltage .

IN74VHC126 Datasheet (268.78 KB)

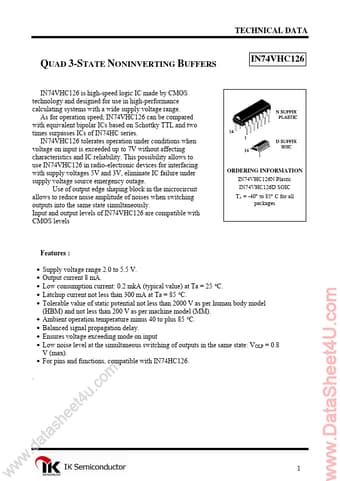

IN74VHC126 Datasheet Preview — Preview of IN74VHC126 PDF

Datasheet Details

Part number:

IN74VHC126

Manufacturer:

IK Semiconductor

File Size:

268.78 KB

Description:

Quad 3-state buffer.
TECHNICAL DATA QUAD 3-STATE NONINVERTING BUFFERS IN74VHC126 is high-speed logic IC made by CMOS technology and designed for use in high-performance c.
