2N6648 PNP Transistor

2N6648 Description

isc Product Specification isc Silicon PNP Darlingtion Power Transistor 2N6648 .
With TO-3 packaging. Built-in base-emitter shunt resistors. Very high DC current gain. Complement to type 2N6648. Minimum Lot-to-.

2N6648 Applications

* Electronic ignition
* Alternator regulator
* Motor controls
* Power switching
* Hammer drivers ABSOLUTE MAXIMUM RATINGS(TC=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage -40 V VCEO Collector-Emitter Voltage -40 V VEBO Emitter-Base Voltage -5 V IC Colle

📥 Download Datasheet

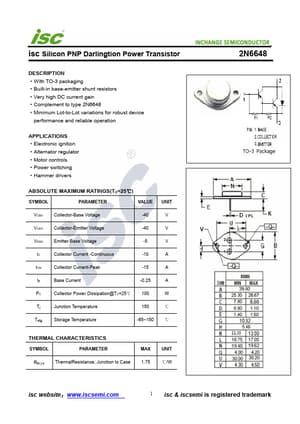

Preview of 2N6648 PDF
datasheet Preview Page 2

Datasheet Details

Part number
2N6648
Manufacturer
INCHANGE
File Size
180.47 KB
Datasheet
2N6648-INCHANGE.pdf
Description
PNP Transistor
