2SA968, 2SA968B PNP Transistor

2SA968 Description

isc Silicon PNP Power Transistor .
With TO-220 packaging. Complement to Type 2SC2238 A B. Minimum Lot-to-Lot variations for robust device performance and reliable operation.

2SA968 Applications

* AC-DC motor control
* Electronic ignition
* Alternator regulator ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE VCBO VCEO Collector-Base Voltage Collector-Emitter Voltage 2SA968 2SA968A 2SA968B 2SA968 2SA968A 2SA968B -160 -180 -200 -160 -180 -200 VEBO Emitter-Base Volta

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: 2SA968, 2SA968B. Please refer to the document for exact specifications by model.

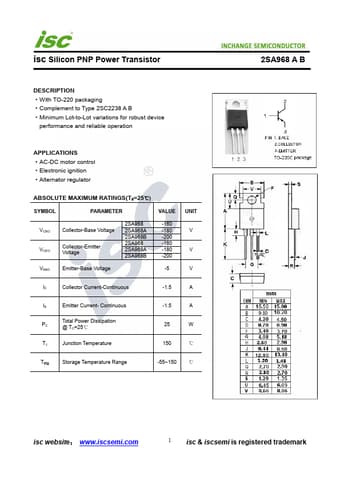

datasheet Preview Page 2

Datasheet Details

Part number
2SA968, 2SA968B
Manufacturer
INCHANGE
File Size
198.01 KB
Datasheet
2SA968B_InchangeSemiconductor.pdf
Description
PNP Transistor
Note
This datasheet PDF includes multiple part numbers: 2SA968, 2SA968B.
Please refer to the document for exact specifications by model.
