2SC1162 NPN Transistor

2SC1162 Description

isc Silicon NPN Power Transistor .
High Collector Current IC= 2. Collector-Emitter Breakdown Voltage- : V(BR)CEO= 35V(Min). Good Linearity of hFE. Low Collector Satu.

2SC1162 Applications

* Designed for low frequency power amplifier applications. ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage 35 V VCEO Collector-Emitter Voltage 35 V VEBO Emitter-Base Voltage 5 V IC Collector Current-Continuous 2.5 A ICM Collector Cur

📥 Download Datasheet

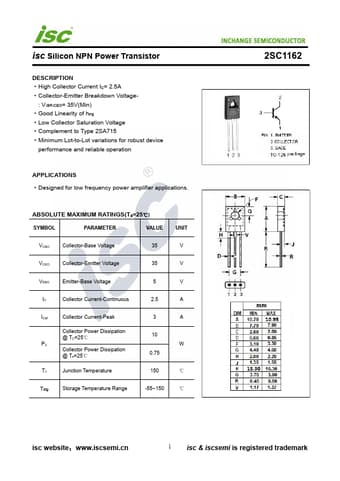

Preview of 2SC1162 PDF
datasheet Preview Page 2

Datasheet Details

Part number
2SC1162
Manufacturer
INCHANGE
File Size
210.85 KB
Datasheet
2SC1162-INCHANGE.pdf
Description
NPN Transistor
