2SC2774 - NPN Transistor

Product Overview

📥 Download Datasheet

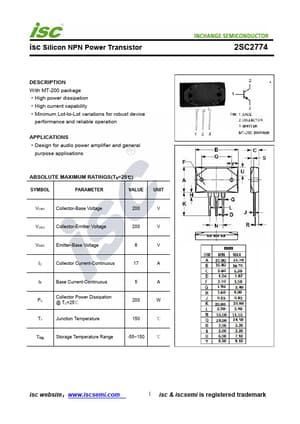

Datasheet preview – 2SC2774

Datasheet Details

Part number 2SC2774
Manufacturer INCHANGE
File Size 219.20 KB
Description NPN Transistor
Datasheet download datasheet 2SC2774 Datasheet
Additional preview pages of the 2SC2774 datasheet.

Product details

Description

With MT-200 package High power dissipation High current capability Minimum Lot-to-Lot variations for robust device performance and reliable operation APPLICATIONS Design for audio power amplifier and general purpose applications ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage 200 V VCEO Collector-Emitter Voltage 200 V VEBO Emitter-Base Voltage 6 V IC Collector Current-Continuous 17 A IB Base Current-Continuous P
