2SC3223 - NPN Transistor

Datasheet Summary

Description

Low Collector Saturation Voltage- : VCE(sat)= 1.0V(Max.)@IC= 10A High Switching Speed Minimum Lot-to-Lot variations for robust device performance and reliable operation APPLICATIONS

amplifier applications.

📥 Download Datasheet

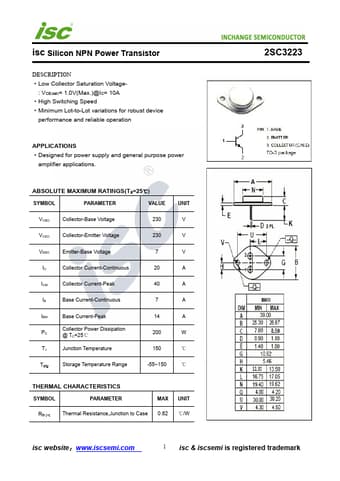

Datasheet preview – 2SC3223

Datasheet Details

Part number 2SC3223
Manufacturer INCHANGE
File Size 188.19 KB
Description NPN Transistor
Datasheet download datasheet 2SC3223 Datasheet
Additional preview pages of the 2SC3223 datasheet.

📁 Similar Datasheet

  • 2SC3223 - SILICON POWER TRANSISTOR (SavantIC)
  • 2SC3220 - High Voltage Ultra High Speed Switching Transistors (Shindengen Electric Mfg.Co.Ltd)
  • 2SC3220 - SILICON POWER TRANSISTOR (SavantIC)
  • 2SC3221 - High Voltage Ultra High Speed Switching Transistors (Shindengen Electric Mfg.Co.Ltd)
  • 2SC3222 - High Voltage Ultra High Speed Switching Transistors (Shindengen Electric Mfg.Co.Ltd)
  • 2SC3225 - Silicon NPN TRANSISTOR (Toshiba Semiconductor)
  • 2SC3228 - TRANSISTOR (Korea Electronics)
  • 2SC3229 - SILICON POWER TRANSISTOR (SavantIC)
  • 2SC3200 - SILICON NPN TRANSISTOR (Korea Electronics)
  • 2SC3201 - SILICON NPN TRANSISTOR (Korea Electronics)
Other Datasheets by INCHANGE

Full PDF Text Transcription

Click to expand full text
isc Silicon NPN Power Transistor DESCRIPTION ·Low Collector Saturation Voltage- : VCE(sat)= 1.0V(Max.)@IC= 10A ·High Switching Speed ·Minimum Lot-to-Lot variations for robust device performance and reliable operation APPLICATIONS ·Designed for power supply and general purpose power amplifier applications.
