2SC3231 - NPN Transistor

2SC3231 Description

isc Silicon NPN Power Transistor 2SC3231 .
Collector-Emitter Breakdown Voltage : V(BR)CEO= 60V(Min). Large Current Capability. High Collector Power Dissipation. Minimum Lot-to-.

2SC3231 Applications

* Designed for B/W TV horizontal deflection output applications. ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage 200 V VCEO Collector-Emitter Voltage 60 V VEBO Emitter-Base Voltage 5 V IC Collector Current-Continuous 4 A ICM Collector C

📥 Download Datasheet

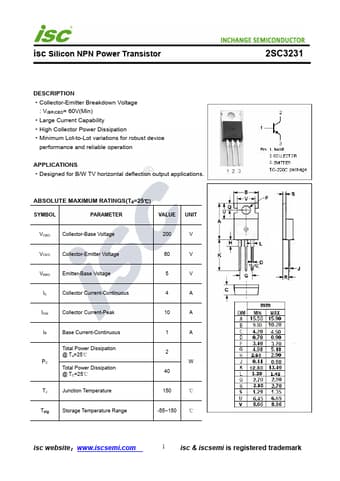

Preview of 2SC3231 PDF
datasheet Preview Page 2

Datasheet Details

Part number
2SC3231
Manufacturer
INCHANGE
File Size
189.56 KB
Datasheet
2SC3231-INCHANGE.pdf
Description
NPN Transistor
