2SC3253 - NPN Transistor

Product Overview

📥 Download Datasheet

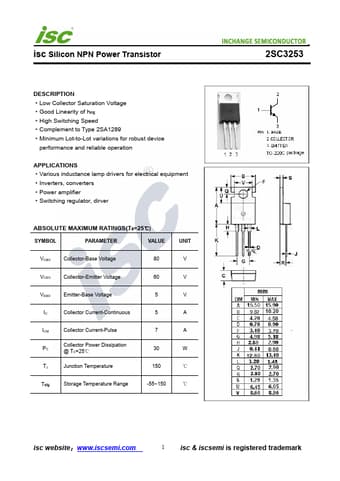

Datasheet preview – 2SC3253

Datasheet Details

Part number 2SC3253
Manufacturer INCHANGE
File Size 194.81 KB
Description NPN Transistor
Datasheet download datasheet 2SC3253 Datasheet
Additional preview pages of the 2SC3253 datasheet.

Product details

Description

Low Collector Saturation Voltage Good Linearity of hFE High Switching Speed Complement to Type 2SA1289 Minimum Lot-to-Lot variations for robust device performance and reliable operation APPLICATIONS Various inductance lamp drivers for electrical equipment Inverters, converters Power amplifier Switching regulator, dirver ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage 80 V VCEO Collector-Emitter Volta
