2SC3257 - NPN Transistor

Datasheet Summary

Description

Collector-Emitter Breakdown Voltage- : V(BR)CEO= 200V(Min) High Switching Speed Minimum Lot-to-Lot variations for robust device performance and reliable operation APPLICATIONS

Switching regulator and high voltage switching applications.

High speed DC-DC converter application

INCHANGE

📥 Download Datasheet

Datasheet Details

Part number	2SC3257
Manufacturer	INCHANGE
File Size	188.51 KB
Description	NPN Transistor
Datasheet	2SC3257 Datasheet
Additional preview pages of the 2SC3257 datasheet.

📁 Similar Datasheet

2SC3257 - Silicon NPN Transistor (Toshiba)
2SC3257 - SILICON POWER TRANSISTOR (SavantIC)
2SC3250 - SILICON POWER TRANSISTOR (SavantIC)
2SC3252 - Power Transistor (Inchange Semiconductor)
2SC3253 - PNP/NPN Epitaxial Planar Silicon Transistors (Sanyo Semicon Device)
2SC3253 - SILICON POWER TRANSISTOR (SavantIC)
2SC3253 - Silicon NPN transistor (BLUE ROCKET ELECTRONICS)
2SC3254 - PNP/NPN Epitaxial Planar Silicon Transistors (Sanyo Semicon Device)
2SC3254 - SILICON POWER TRANSISTOR (SavantIC)
2SC3255 - PNP/NPN Epitaxial Planar Silicon Transistors (Sanyo Semicon Device)

Other Datasheets by INCHANGE

2SC3250 - NPN Transistor
2SC3253 - NPN Transistor
2SC3254 - NPN Transistor
2SC3255 - NPN Transistor
2SC3256 - NPN Transistor
2SC3258 - NPN Transistor
2SC3210 - NPN Transistor
2SC3211 - NPN Transistor

Full PDF Text Transcription

Click to expand full text

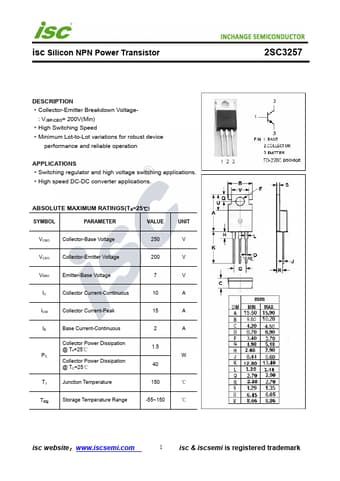

isc Silicon NPN Power Transistor 2SC3257 DESCRIPTION ·Collector-Emitter Breakdown Voltage- : V(BR)CEO= 200V(Min) ·High Switching Speed ·Minimum Lot-to-Lot variations for robust device performance and reliable operation APPLICATIONS ·Switching regulator and high voltage switching applications. ·High speed DC-DC converter applications. ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage 250 V VCEO Collector-Emitter Voltage 200 V VEBO Emitter-Base Voltage 7 V IC Collector Current-Continuous 10 A ICM Collector Current-Peak 15 A IB Base Current-Continuous Collector Power Dissipation @ Ta=25℃ PC Collector Power Dissipation @ TC=25℃ TJ Junction Temperature 2 A 1.
